30K-1

The 30K-1 Amateur Transmitter – 500 watts input on CW, 375 watts input on phone.
The companion 310A Exciter, featuring a 70E-8A Permeability Tuned Oscillator (PTO), was used to drive the 30K-1 on the 80, 40, 20, 15, 11 and 10 meter bands.

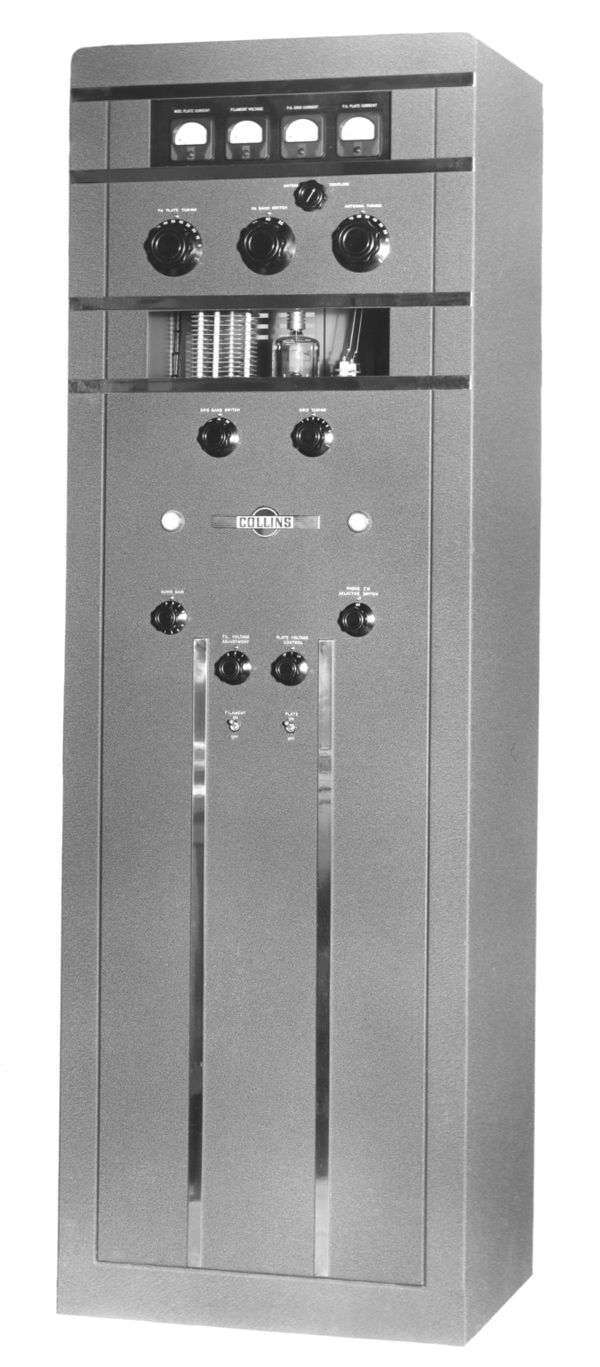

30K-1 Transmitter, Front view

Brochure

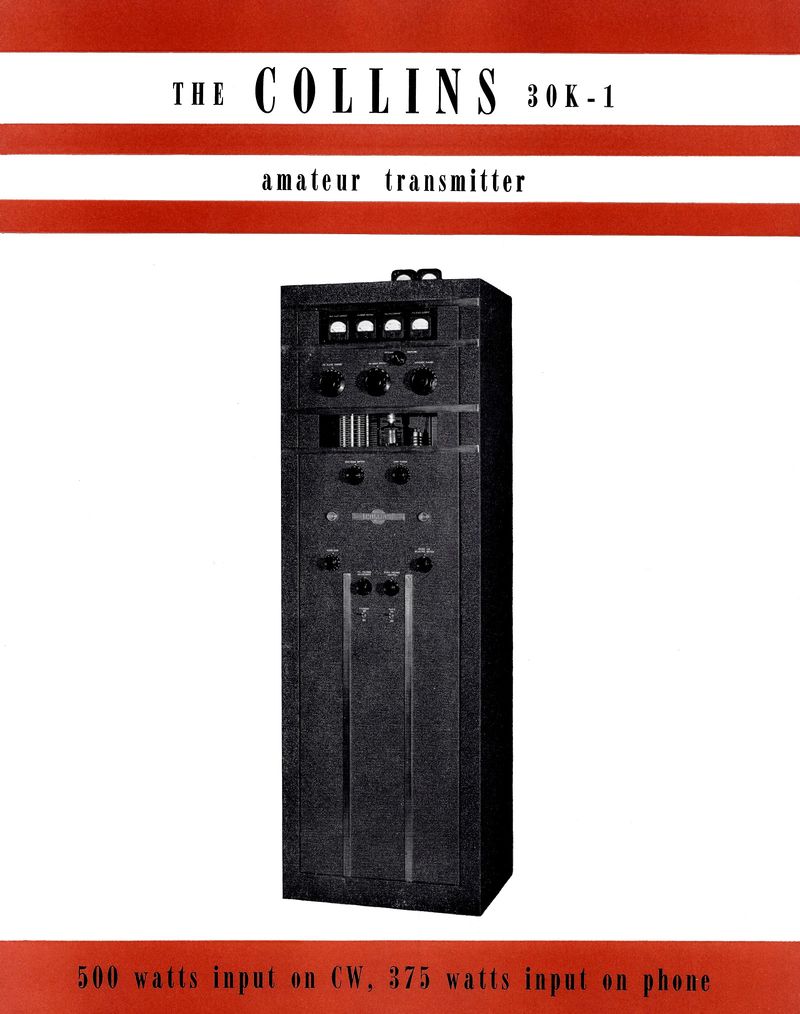

30K-1 Transmitter, Page 1

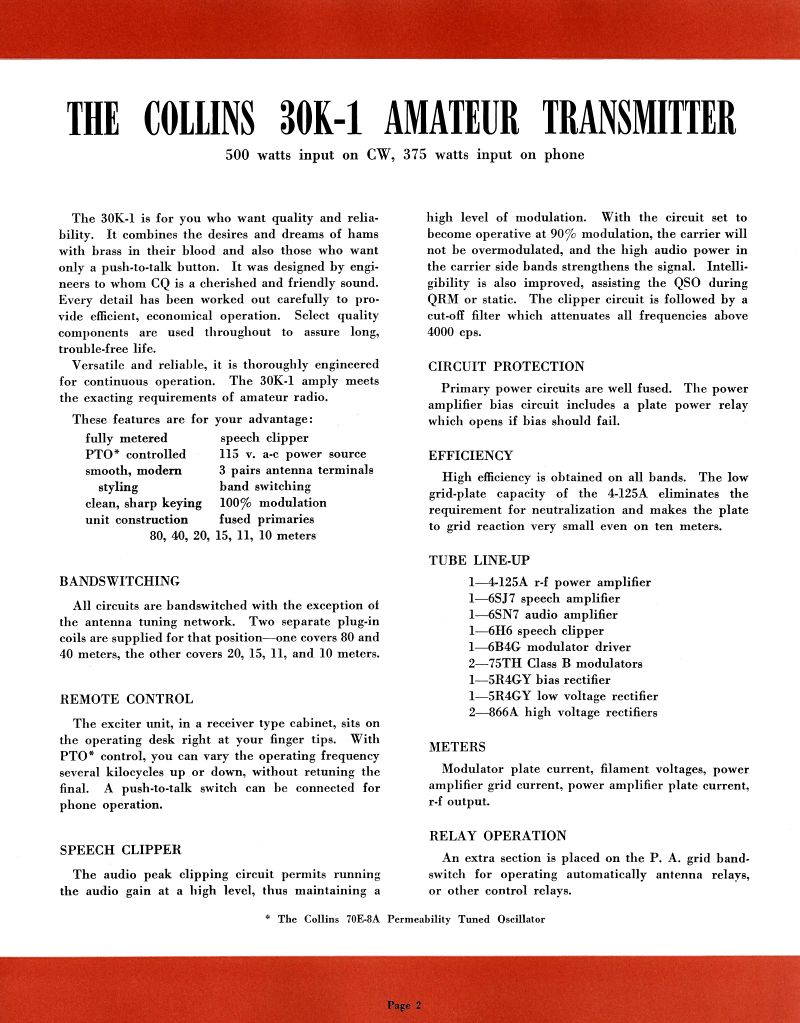

30K-1 Transmitter, Page 2

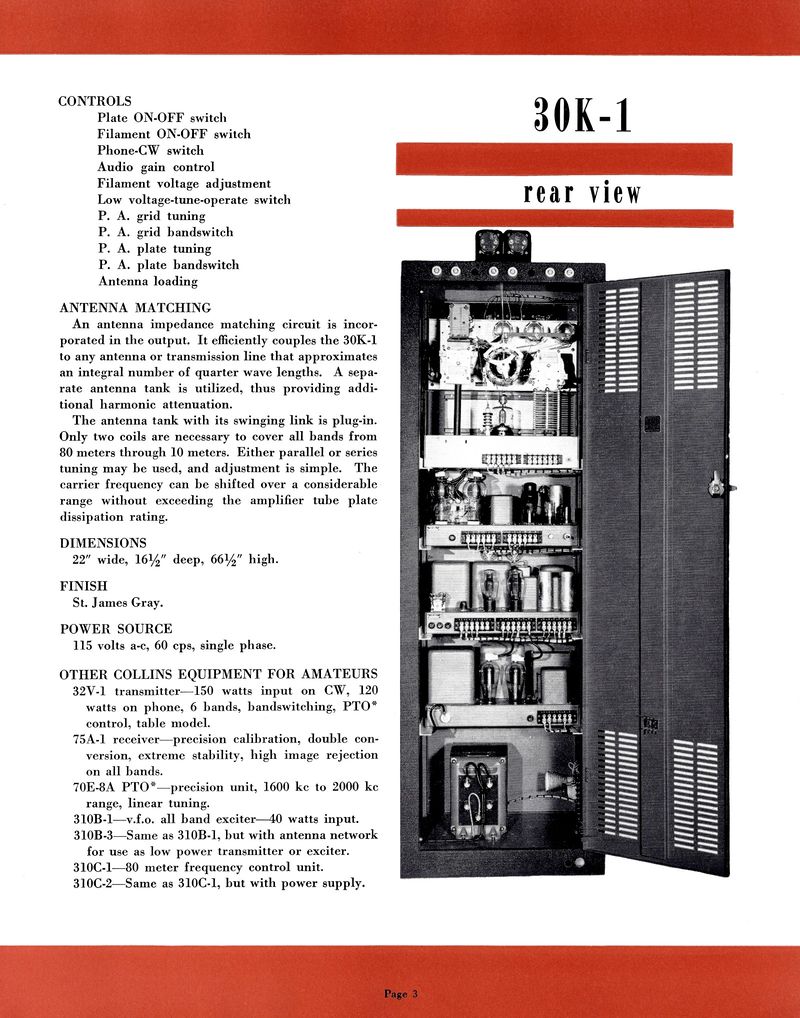

30K-1 Transmitter, Page 3

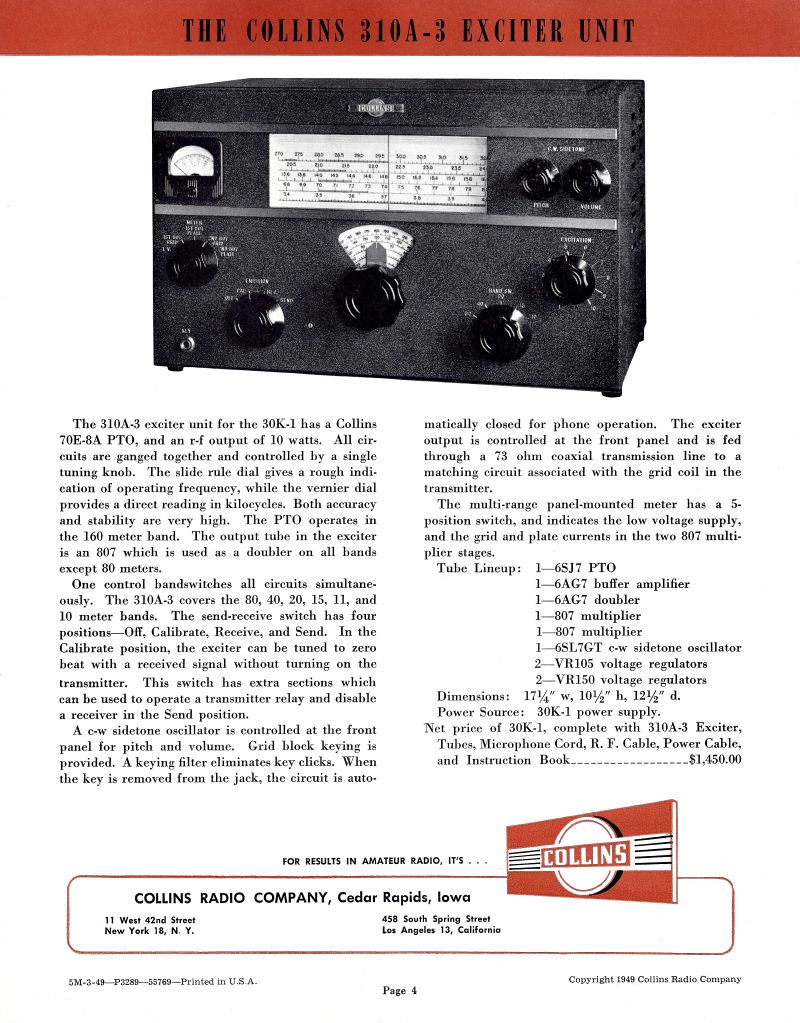

30K-1 Transmitter, Page 4

Circa

Introduced 1946 – Discontinued 1954
